UNDERGROUND DISTRIBUTION / RENEWABLE ENERGY
Pad Mounted
Transformers.
Ground-level power.
Connected to your project.

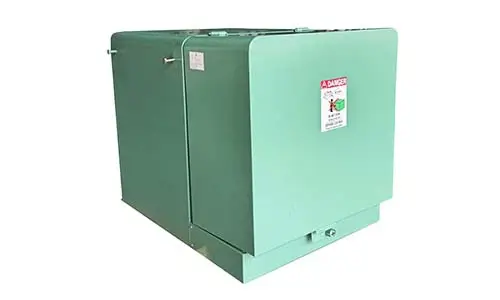

Enclosed transformer configurations for underground utility networks, customer sites and renewable energy applications. Bring together the electrical duty, feed arrangement and cable interfaces.
Project-specific selection. Clear technical documentation.
01 / THE RIGHT FIT
A transformer.
A coordinated cable interface.
Pad-mounted equipment places the transformer and its connection compartments in a ground-level enclosure. The layout must suit the site, cable routing and operating access.
The feed arrangement, terminations and protection are as important as the transformer rating. VoltGrid helps turn the single-line diagram and site requirements into a defined equipment scope.
Design for the cable system
Confirm interface ratings, termination format, cable bend space and entry locations.
Design for the location
Review enclosure access, foundation details, corrosion exposure and service clearances.
02 / CONFIGURATION OPTIONS
Choose the duty
before the enclosure.
Distribution loads and renewable energy duties require different technical inputs, even when the equipment has a similar external appearance.
Single-phase distribution
A ground-level format for a specified single-phase distribution service.
- Confirm the service voltage and connection
- Review cable interfaces and protective devices
- Coordinate enclosure access and pad layout
Three-phase distribution
For cable-fed facilities, campuses and distribution networks.
- Define load profile and transformer rating
- Specify feed, terminals and LV cable or bus connections
- Review switching, fusing and access requirements
- Generation
- Collection network
- Grid connection
Renewable energy duty
Project-specific transformer review for renewable generation or storage systems.
- Provide inverter or generator electrical data
- Describe harmonics, loading cycles and power-flow duty
- Coordinate collection-system voltage and protection
Renewable and storage duties require a dedicated review of the connected equipment and operating profile.
Radial or loop feed?
Start with the network diagram.
Specify the intended operating arrangement and the required switching and cable interfaces.
Radial feed
A supply path feeding the transformer. Confirm incoming cable connections and the required protection.
Loop feed
Additional cable interfaces supporting the specified network arrangement. Define switching, isolation and operating requirements.
Live-front or dead-front
Select the termination arrangement required by the utility or project. Interface geometry and ratings must be compatible.
03 / TECHNICAL SELECTION
Define the rating.
Detail the connections.
Use the single-line diagram, site layout and cable schedule to build the enquiry. Final configuration and ratings are established in the project proposal.
Enquiry checklistPDF · Project specification worksheet| Selection parameter | What to confirm |
|---|---|
| Power & electrical duty | kVA / MVA, load or generation profile and any harmonic requirements |
| Voltages & connections | Primary / secondary voltage, phase, frequency and vector group |
| Feed & switching | Radial or loop arrangement; switching and isolation requirements |
| HV cable interfaces | Live-front / dead-front arrangement, interface rating and cable details |
| LV connections | Cable or bus interface, terminal layout and neutral requirements |
| Protection & accessories | Fuses, arresters, indicators, monitoring and specified interlocks |
| Insulating liquid & cooling | Project requirements for liquid, cooling and temperature rise |
| Enclosure & pad | Material, corrosion protection, access, dimensions and cable entry |
| Standards & documentation | Applicable project standards, drawings, inspection and test scope |
Specific ratings, availability and supporting evidence are confirmed for the proposed equipment.
04 / APPLICATIONS
Built around
the way you use power.
Bring the application into the specification.
It shapes the equipment and the interfaces.
Residential development
Cable-fed local distribution in residential networks.
Focus: Service connections & site accessCommercial & industrial
Distribution for facilities and business campuses.
Focus: Cable capacity & maintenance spaceSolar & wind projects
Project-defined transformation in renewable systems.
Focus: Operating cycles & collection voltageBattery storage
Transformer interfaces for storage power conversion.
Focus: Bidirectional duty & protection05 / PROJECT SUPPORT
From your requirements
to a defined supply.
Agree the equipment scope, supporting documents and project interfaces at each stage.
- 01
Map the network
Provide the feed arrangement and connected equipment data.
- 02
Coordinate the interfaces
Review cable terminations, LV connections and enclosure access.
- 03
Confirm the package
Agree protection, accessories and technical documentation.
- 04
Prepare for installation
Check pad dimensions, handling, packing and delivery scope.
06 / COMMON QUESTIONS
Before you
specify.
Practical questions about pad mounted transformer selection and project requirements.
Ask a technical questionHow do radial and loop feed arrangements differ?
The arrangements differ in their cable interfaces and intended network operation. Provide the single-line diagram and switching requirements so the transformer connections can be configured accordingly.
Is every pad-mounted transformer suitable for renewable energy?
No. Inverter or generator characteristics, harmonic content, load cycles and protection requirements need to be considered. Storage projects may also involve bidirectional power-flow duties.
Can the enclosure be used in a corrosive environment?
Specify the actual environmental exposure and required material or coating system. Enclosure details, terminals and accessories should all be reviewed for that environment.
What is needed to confirm cable compatibility?
Provide the voltage and current requirements, termination standard, interface dimensions, conductor information and cable entry arrangement. Cable labels or photographs alone may not establish compatibility.
What installation information should be agreed before delivery?
Confirm foundation and cable-entry dimensions, working clearances, lifting arrangements, access and the equipment earthing interface. Installation must follow the approved project drawings and equipment instructions.
